In most cases, your entitlement product serial number is the MSA array chassis serial number. It is very important to enter the array chassis serial number as your entitlement product serial number to gain access to HPE firmware downloads and support materials.

The MSA array chassis serial number may be accessed through the HPE Storage Management Utility (SMU), a web-based interface for configuring, monitoring, and managing the storage system.

HP MSA Default Username & Password



Find HPE MSA 2040 SAN Storage Serial Number using SMU

If running SMU v3, the MSA array chassis serial number is accessed as follows:

• Login to HPE Storage Management Utility (SMU) by using default credentials, default username/password are manage/!manage.
• Select the System icon in the left-hand pane.
• Select the Table view.
• In the search filter field, enter the enclosure.
• Hover your mouse cursor over the MSA array chassis enclosure (usually Enclosure 1). Your entitlement MSA array chassis serial number is displayed as the Midplane Serial.

If running SMU v2, the MSA array chassis serial number is accessed as follows:

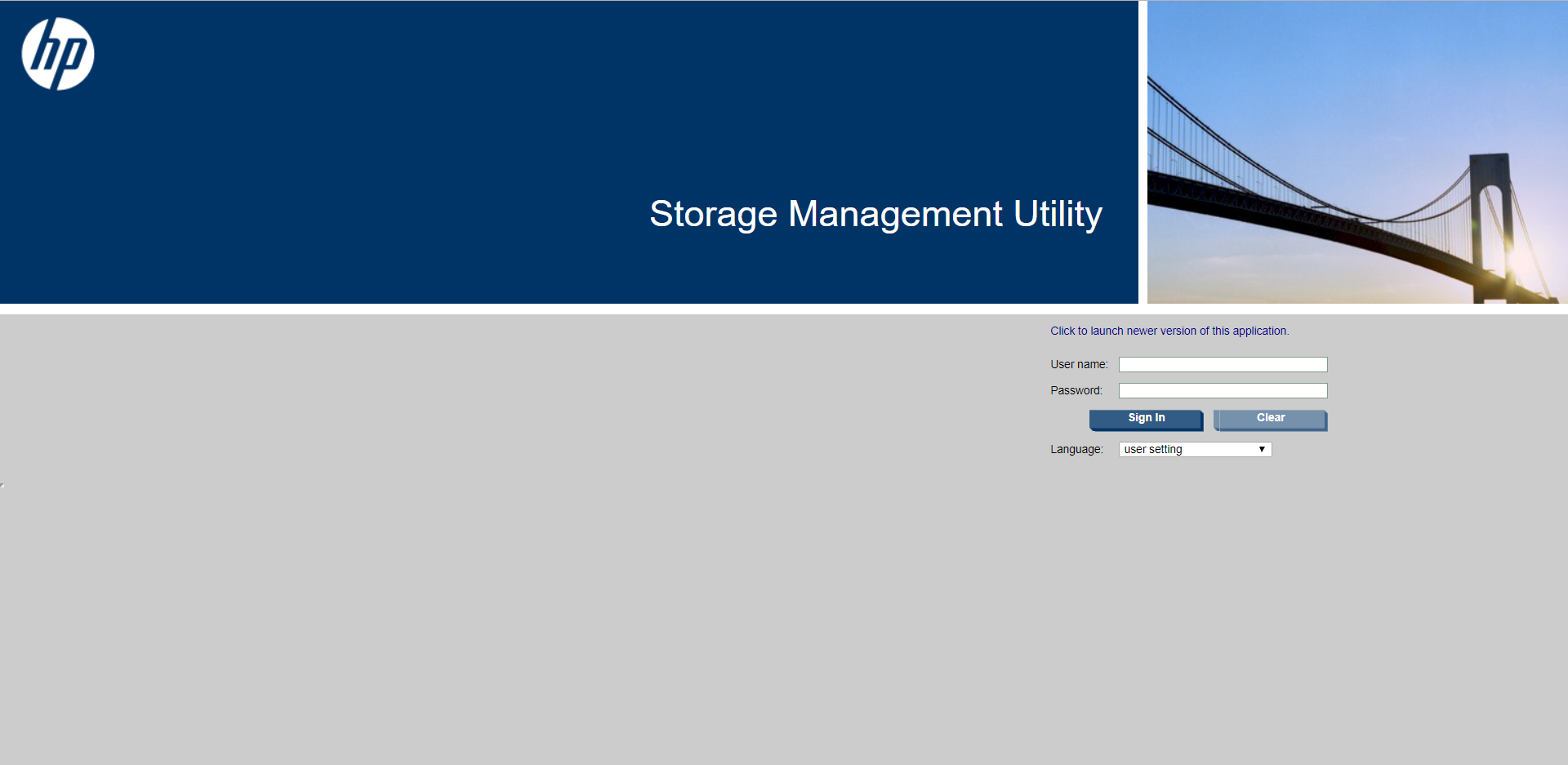

• Login to HPE Storage Management Utility (SMU) by using default credentials, default username/password are manage/!manage.
• Locate Configuration View in the left-hand pane. Under Physical view select the enclosure that is your MSA array chassis (usually Enclosure 1).
• Your entitlement MSA array chassis serial number is displayed as the Midplane Serial Number.

Find HPE MSA 2040 SAN Storage Serial Number using CLI

An alternate method to gain access to the MSA array chassis serial number is through the use of the Command Line Interface (CLI).

• Log in to a SAN switch using an SSH client like PuTTY, as shown below. Default username/password are manage/!manage.

  login as: manage
  Using keyboard-interactive authentication.
  Password:

  HP MSA Storage MSA 2040 SAN
  System Name: PCPEPSMSA
  System Location: Uninitialized Location
  Version: GL220P009
  #


• Enter the show fru command.

  # show fru

• Look at the enclosure that is your MSA array chassis (usually Enclosure ID 1). Your entitlement MSA array chassis serial number is displayed as the Configuration SN.

  # show fru
  FRU
  ---
  Name: CHASSIS_MIDPLANE
  Description: SPS-Chassis 2U12 6Gb MSA 2040
  Part Number: 717869-001
  Serial Number: 2S67XXXXXX
  Revision: D
  Dash Level:
  FRU Shortname: Midplane/Chassis
  Manufacturing Date: 2016-12-03 02:56:37
  Manufacturing Location: Tianjin,TEDA,CN
  Manufacturing Vendor ID: 0x017C
  FRU Location: MID-PLANE SLOT
  Configuration SN: 2S67XXXXXX
  FRU Status: OK
  Enclosure ID: 1
